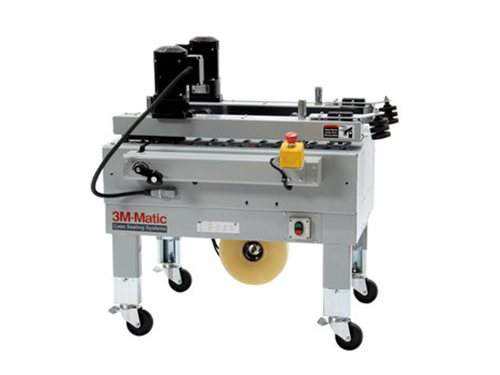

3M-MATIC™ CASE SEALER 800AB3

3M-Matic™ Case Sealer 800ab3 with 3M™ AccuGlide™ 3 Taping Head is an adjustable side belt drive case sealer. Bottom seal only at rates up to 40 cases/minute, using tape widths from 48 mm to 72 mm wide.

• Twin gear drive motors for heavy-duty reliability.

• Spring-loaded side drives to center cases. Inclined rollers at in-feed help keep case down on conveyor bed.

• Rugged construction with 16-gauge welded steel frame and epoxy paint finish.

• Food and beverage, paper and print, distribution centers, pharmaceutical and general industrial.

• Semi-automatic bottom only case sealing.

• Seals case lengths of 6 inches and up; width 5.5 inch – 21.5 inch; height 4.75 inch and up.

Specifications

• Application: Packing Product in Batches

• Brand: 3M-Matic

• Color: Gray

• Drive System: Side Belt

• Frame Material: Epoxy Powder Coated Steel

• Industry – Use: Food and Beverage, General Industrial, Medical, MRO, Paper, Print

• Machine Type Uniform: Sized Boxes

• Maximum Box Weight: 85 Pound

• Maximum Box Width: 21-1/2 Inch

• Maximum Cases per Minute: 40 Cases Per Minute

• Minimum Box Height: 4-3/4 Inch

• Minimum Box Length: 6 Inch

• Minimum Box Width: 5-1/2 Inch

• Operation: Operator folds flaps

• Product Form: Each

• Tape Width: 3 Inch (72 mm)
